DIN EN857 2SC

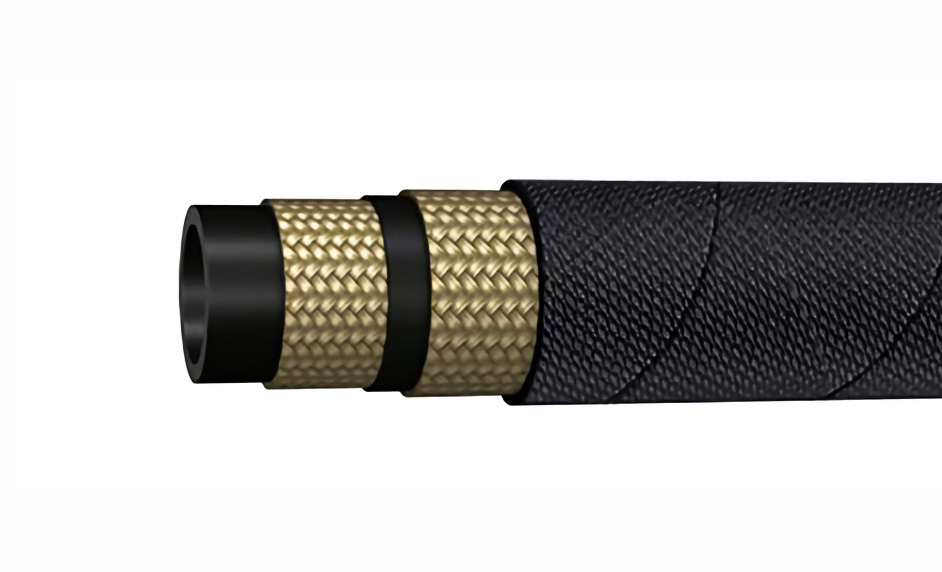

DIN EN857 2SC RUBBER HYDRAULIC HOSE

TUBE:Oil resistant synthetic rubber.

REINFORCEMENT:Two high tensile steel braid.

COVER:Synthetic rubber, with high ozone, weather resistance and heat resistance.

Temperature Range : -40℃~+100℃ (212°F ).

APPLICATIONS : DIN EN857 2SC rubber hydraulic hose suitable for medium pressure lines with installation constraints, pilot lines, return lines and suction lines, Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water.

DIN EN857 2SC rubber hydraulic hose suitable for medium pressure lines with installation constraints, pilot lines, return lines and suction lines, Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water.
DIN EN 857 2SC RUBBER HYDRAULIC HOSE
DN DASH Hose I.D R.O.D MAX O.D W.P. B.P. MIN B.R WEIGHT LENGTH
inch mm mm mm Mpa Psi Mpa Psi mm kg/m m
6 -4 1/4″ 6.4  11.3  13.1  40.0  5800 185.0  1600 45 0.28  50/100
8 -5 5/16″ 7.9  12.9  14.7  35.0  5075 170.0  1400 55 0.33  50/100
10 -6 3/8″ 9.5  15.0  16.8  33.0  4785 150.0  1320 65 0.42  50/100
13 -8 1/2″ 12.7  18.6  20.4  27.5  3990 122.0  1100 80 0.52  50/100
16 -10 5/8″ 15.9  21.7  23.5  25.0  3625 105.0  1000 90 0.60  50/100
19 -12 3/4″ 19.0  25.6  27.6  21.5  3120 92.0  860 120 0.81  50/100
25 -16 1″ 25.4  33.2  35.4  16.5  2395 72.0  660 160 1.16  50/100

NOTE : Any color cover will available as requirement. Any questions please feel free to contact us.

    SWICO TECHNOLOGY produce SAE standards hydraulic hoses, DIN standards hydraulic hose and industrial hose, including super high pressure rubber hose, high pressure rubber hose, low pressure rubber hose, CNG hose, LPG hose, large diameter PTFE hose, oil hose, air hose, water hose, large diameter oil suction and discharge hose, large diameter water suction and discharge hose, chemical hose, mining hose, concrete delivery hose etc. All cilients will get satisfying service and products from us.
