DIN EN856 4SP

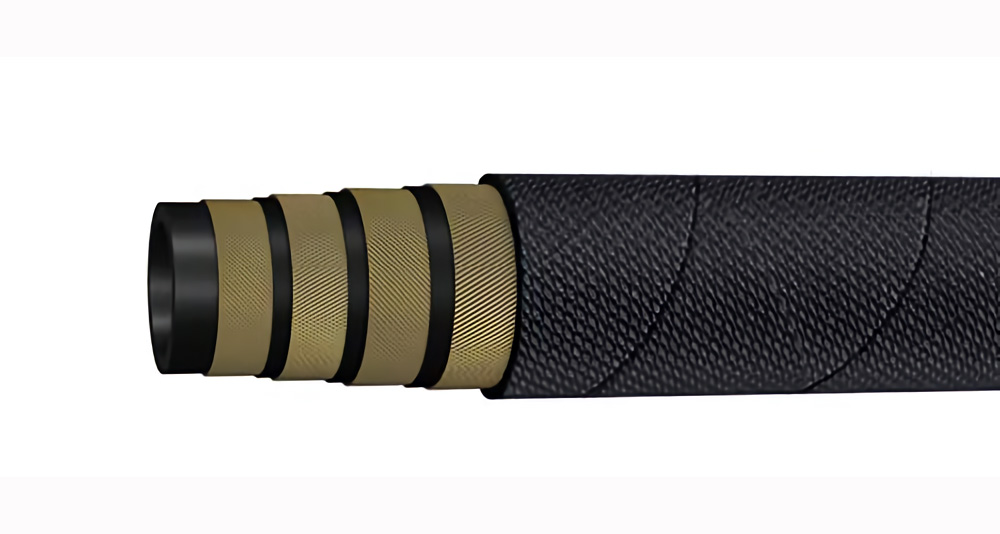

DIN EN856 4SP RUBBER HYDRAULIC HOSE

TUBE : Oil resistant synthetic rubber.

REINFORCEMENT : Four high tensile steel spirals.

COVER : High Ozone, weather and heat resistant synthetic rubber.

Temperature Range : -40℃~+100℃ (212°F ).

APPLICATIONS : DIN EN856 4SP rubber hydraulic hose suitable for mineral oils, vegetable oils and synthetic ester based oils, glycols and polyglycols, mineral oils in aqueous emulsion, water.

DIN EN856 4SP rubber hydraulic hose suitable for mineral oils, vegetable oils and synthetic ester based oils, glycols and polyglycols, mineral oils in aqueous emulsion, water.
DIN EN 856 4SP RUBBER HYDRAULIC HOSE
DN DASH Hose I.D R.O.D MAX O.D W.P. B.P. MIN B.R WEIGHT LENGTH
inch mm mm mm Mpa Psi Mpa Psi mm kg/m m
6 -4 1/4″ 6.6±0.4 14.7±0.6 18.7  45.0  6525 180.0  26100 150 0.56 20/40
10 -6 3/8″ 9.7±0.4 17.5±0.6 22.2  44.5  6455 178.0  25810 180 0.78  20/40
13 -8 1/2″ 12.9±0.6 20.2±0.8 25.4  41.5  6020 166.0  24070 230 0.89  20/40
16 -10 5/8″ 16.1±0.6 23.8±0.8 29.0  35.0  5075 140.0  20300 250 1.11  20/40
19 -12 3/4″ 19.2±0.6 28.2±0.8 33.0  35.0  5075 140.0  20300 300 1.59  20/40
25 -16 1″ 25.7±0.7 35.3±0.8 40.9  28.0  4060 112.0  16240 340 2.02  20/40
32 -20 1-1/4″ 32.2±0.8 46.0±1.0 52.4  21.0  3045 84.0  12180 460 3.32  20/40
38 -24 1-1/2″ 38.5±0.8 52.4±1.0 58.8  18.5  2685 74.0  10730 560 3.70  20/40
51 -32 2″ 51.2±0.8 65.3±1.0 71.4  16.5  2395 66.0  9570 660 5.47  20/40

NOTE : Any color cover will available as requirement. Any questions please feel free to contact us.
