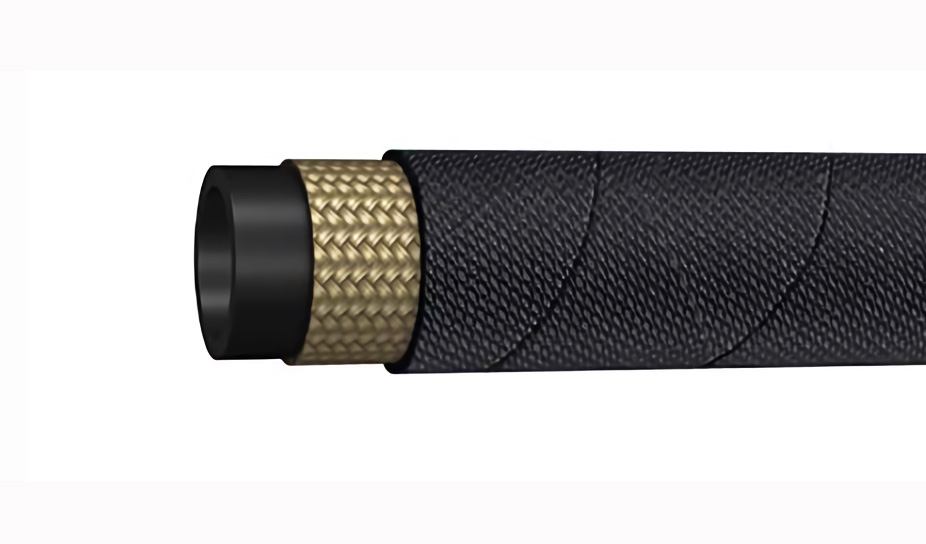

SAE J517 TYPE 100 R1A / DIN EN853 1ST HYDRAULIC HOSE

TUBE：Oil resistant synthetic rubber.

REINFORCEMENT：One high tensile steel braided.

COVER：Synthetic rubber, with high ozone, weather resistance and heat resistance.

Temperature Range : -40℃~+100℃ （212°F ）.

APPLICATIONS : SAE J517 R1A/ DIN EN853 1ST hydraulic hose suitable for mineral oils, vegetable oils and synthetic ester based oils, glycols and polyglycols, mineral oils in aqueous emulsion, water.

SAE J517 R1A/ DIN EN853 1ST hydraulic hose suitable for mineral oils, vegetable oils and synthetic ester based oils, glycols and polyglycols, mineral oils in aqueous emulsion, water.

SAE J517 TYPE 100 R1A / DIN EN 853 1ST RUBBER HYDRAULIC HOSE
DN	dash	Hose I.D		R.O.D	MAX O.D	W.P.		B.P.		MIN B.R	WEIGHT	LENGTH
DN	dash	inch	mm	mm	mm	Mpa	Psi	Mpa	Psi	mm	kg/m	m
6	-4	1/4″	6.6±0.4	11.1±0.6	16.7	22.5	3270	90.0	12840	100	0.31	50/100
8	-5	5/16″	8.1±0.4	12.7±0.6	18.3	21.5	3120	86.0	12280	115	0.38	50/100
10	-6	3/8″	9.7±0.4	15.1±0.6	20.6	18.0	2615	72.0	10280	130	0.45	50/100
13	-8	1/2″	12.9±0.6	18.3±0.8	23.8	16.0	2320	64.0	9180	180	0.55	50/100
16	-10	5/8″	16.1±0.6	21.4±0.8	27.0	13.0	1890	52.0	7420	200	0.63	50/100
19	-12	3/4″	19.2±0.6	25.4±0.8	31.0	10.5	1530	42.0	6000	240	0.77	50/100
25	-16	1″	25.7±0.7	33.3±0.8	39.3	8.7	1265	36.0	5060	300	1.06	50/100
32	-20	1-1/4″	32.2±0.8	40.5±1.2	47.6	6.2	900	26.0	3600	420	1.45	20/40
38	-24	1-1/2″	38.5±0.8	46.8±1.2	54.0	5.0	730	20.0	2860	500	1.80	20/40
51	-32	2″	51.2±0.8	60.3±1.6	68.3	4.0	580	16.0	2280	630	2.30	20/40

NOTE : Any color cover will available as requirement. Any questions please feel free to contact us.
