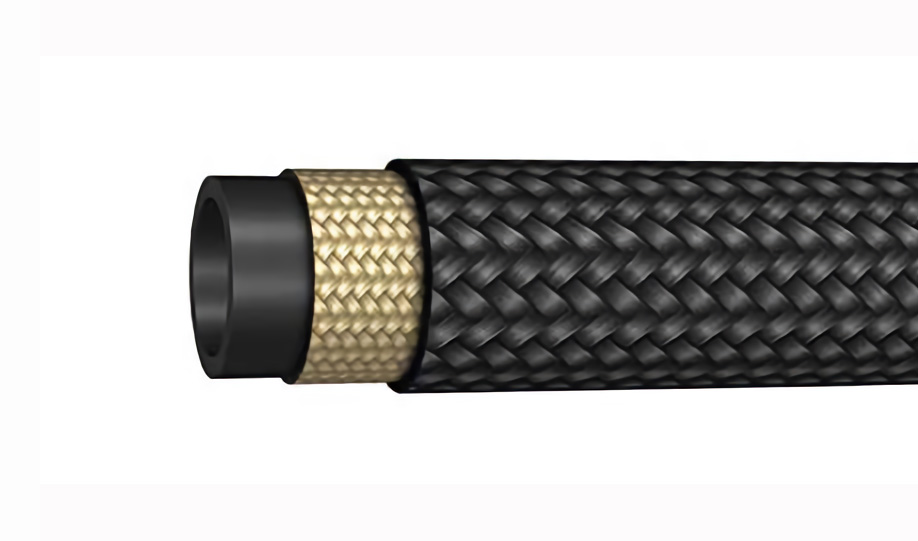

SAE J517 TYPE 100 R5 RUBBER HYDRAULIC HOSE
TUBE:Oil resistant synthetic rubber
REINFORCEMENT:One high tensile steel braided
COVER:One layer of fiber braided
Temperature Range : -40℃~+100℃ (212°F )
APPLICATIONS:SAE J517 R5 hydraulic hose suitable for mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water, diesel fuel.
SAE J517 TYPE 100 R5 HYDRAULIC HOSE | |||||||||||
DN | Dash | Hose I.D | MAX O.D | W.P. | B.P. | MIN B.R | WEIGHT | LENGTH | |||
Inch | mm | mm | Mpa | Psi | Mpa | Psi | mm | kg/m | m | ||
5 | -4 | 3/16″ | 5.1±0.4 | 13.7 | 21.0 | 3045 | 84.0 | 12180 | 75 | 0.24 | 50/100 |
6.3 | -5 | 1/4″ | 6.8±0.4 | 15.3 | 21.0 | 3045 | 84.0 | 12180 | 85 | 0.29 | 50/100 |
8 | -6 | 5/16″ | 8.3±0.4 | 17.6 | 15.7 | 2276 | 62.8 | 8990 | 100 | 0.36 | 50/100 |
11 | -8 | 13/32″ | 10.7±0.4 | 20.0 | 14.0 | 2030 | 56.0 | 8120 | 115 | 0.48 | 50/100 |
13 | -10 | 1/2″ | 13.2±0.5 | 24.0 | 12.2 | 1769 | 48.8 | 6960 | 140 | 0.55 | 50/100 |
16 | -12 | 5/8″ | 16.5±0.5 | 28.0 | 10.5 | 1522 | 42.0 | 6090 | 165 | 0.65 | 50/100 |
22 | -16 | 7/8″ | 22.7±0.5 | 32.2 | 5.6 | 812 | 22.4 | 3090 | 185 | 0.69 | 20/40 |
29 | -20 | 1-1/8″ | 29.2±0.6 | 38.9 | 4.3 | 623 | 17.2 | 2494 | 230 | 0.84 | 20/40 |
35 | -24 | 1-3/8″ | 35.5±0.6 | 45.2 | 3.5 | 507 | 14.0 | 2030 | 265 | 1.03 | 20/40 |
46 | -32 | 1-13/16″ | 46.6±0.6 | 57.6 | 2.4 | 348 | 9.6 | 1392 | 335 | 1.26 | 20/40 |
60 | -40 | 2-3/8″ | 61.1±0.8 | 74.2 | 2.4 | 318 | 9.6 | 1392 | 610 | 2.00 | 20/40 |
76 | -48 | 3″ | 77.0±0.8 | 91.7 | 1.4 | 203 | 5.6 | 812 | 840 | 3.00 | 20/40 |
