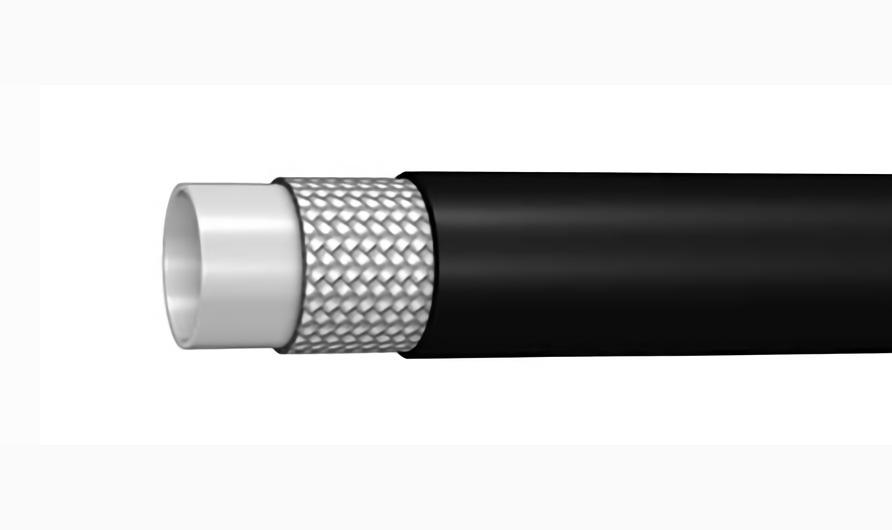

SAE J517 TYPE 100 R7 THERMOPLASTIC HOSE
TUBE : Nylon or PU.
REINFORCEMENT : One layer of high tensile fiber braided.
COVER : PU.
Temperature Range : -40℃~+100℃ （212°F ）.
APPLICATIONS：SAE J517 R7 thermoplastic hose suitable for automotive, Construction Machinery, Machine Tools, Agricultural Machinery, Mining, Paint Spraying, Aerospace,Hydraulic control systems for refrigeration industry.
| SAE J517 100 R7/EN856 R7 TERMOPLASTIC HOSE | |||||||||
| DN | dash | Hose I.D | O.D | W.P. | B.P. | MIN B.R | LENGTH | ||
| inch | mm | mm | Mpa | Mpa | mm | m | |||
| 3 | -2 | 1/8″ | 3.2 | 8.5 | 17.2 | 68.8 | 13 | 100 | |
| 5 | -3 | 3/16″ | 4.8 | 10.8 | 21.0 | 84.0 | 33 | 100 | |
| 6 | -4 | 1/4″ | 6.4 | 13.0 | 19.0 | 76.0 | 38 | 100 | |
| 8 | -5 | 5/16″ | 8.0 | 15.1 | 17.5 | 70.0 | 46 | 100 | |
| 10 | -6 | 3/8″ | 9.5 | 17.0 | 15.7 | 62.8 | 51 | 100 | |
| 13 | -8 | 1/2″ | 12.7 | 20.7 | 14.0 | 56.0 | 76 | 100 | |
| 16 | -10 | 5/8″ | 16.0 | 22.0 | 11.0 | 44.0 | 110 | 100 | |
| 19 | -12 | 3/4″ | 19.0 | 26.0 | 8.7 | 34.8 | 127 | 50 | |
| 25 | -16 | 1″ | 25.0 | 32.0 | 7.0 | 28.0 | 203 | 50 | |
NOTE : Smooth cover and any color rubber cover will available. Any questions please feel free to contact us.
SWICO TECHNOLOGY produce SAE standards hydraulic hoses, DIN standards hydraulic hose and industrial hose, including super high pressure rubber hose, high pressure rubber hose, low pressure rubber hose, CNG hose, LPG hose, large diameter PTFE hose, oil hose, air hose, water hose, large diameter oil suction and discharge hose, large diameter water suction and discharge hose, chemical hose, mining hose, concrete delivery hose etc. All cilients will get satisfying service and products from us.
