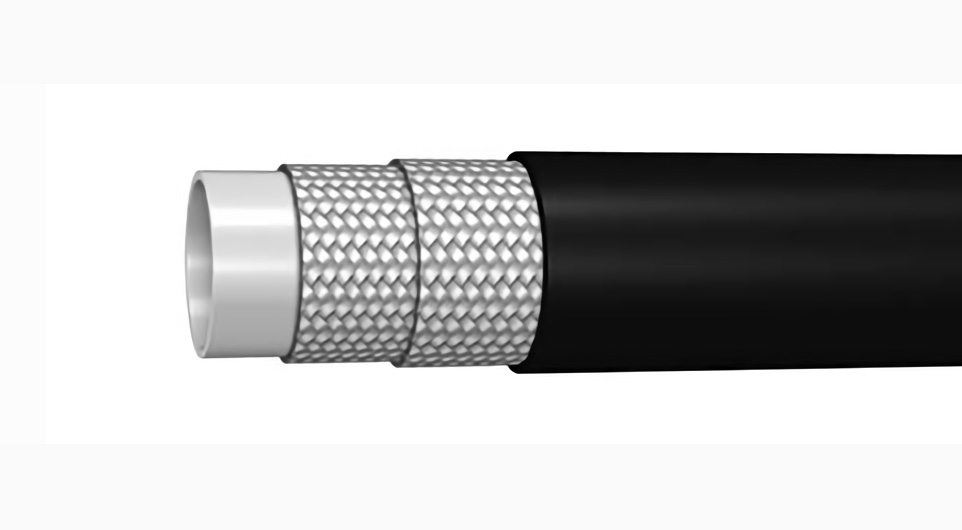

SAE J517 TYPE 100 R8 / DIN EN855 R8 RESIN HOSE
TUBE : Nylon or PU.
REINFORCEMENT : Two layer of high tensile fiber braided.
COVER : PU.
Temperature Range : -40℃~+100℃ （212°F ）.
APPLICATIONS：SAE J517 R8/ DIN EN855 R8 resin hose suitable for automotive, Construction Machinery, Machine Tools, Agricultural Machinery, Mining, Paint Spraying, Aerospace,Hydraulic control systems for refrigeration industry.
| SAE 100 R8/DN855 R8 RESIN HOSE | |||||||||
| DN | DASH | Hose I.D | O.D | W.P. | B.P. | MIN B.R | LENGTH | ||
| inch | mm | mm | Mpa | Mpa | mm | m | |||
| 3 | -2 | 1/8″ | 3.2 | 9.5 | 35.0 | 140.0 | 30 | 100 | |
| 5 | -3 | 3/16″ | 4.8 | 13.1 | 35.0 | 140.0 | 38 | 100 | |
| 6 | -4 | 1/4″ | 6.4 | 15.9 | 35.0 | 140.0 | 51 | 100 | |
| 8 | -5 | 5/16″ | 8.0 | 17.0 | 30.0 | 120.0 | 60 | 100 | |
| 10 | -6 | 3/8″ | 9.5 | 19.0 | 28.0 | 112.0 | 64 | 100 | |
| 13 | -8 | 1/2″ | 12.7 | 22.7 | 24.5 | 98.0 | 100 | 100 | |
| 16 | -10 | 5/8″ | 16.0 | 25.0 | 19.2 | 76.8 | 140 | 100 | |
| 19 | -12 | 3/4″ | 19.0 | 29.0 | 15.7 | 62.8 | 170 | 50 | |
| 25 | -16 | 1″ | 25.0 | 34.0 | 14.0 | 56.0 | 230 | 50 | |
NOTE : Smooth cover and any color rubber cover will available. Any questions please feel free to contact us.
SWICO TECHNOLOGY produce SAE standards hydraulic hoses, DIN standards hydraulic hose and industrial hose, including super high pressure rubber hose, high pressure rubber hose, low pressure rubber hose, CNG hose, LPG hose, large diameter PTFE hose, oil hose, air hose, water hose, large diameter oil suction and discharge hose, large diameter water suction and discharge hose, chemical hose, mining hose, concrete delivery hose etc. All cilients will get satisfying service and products from us.
