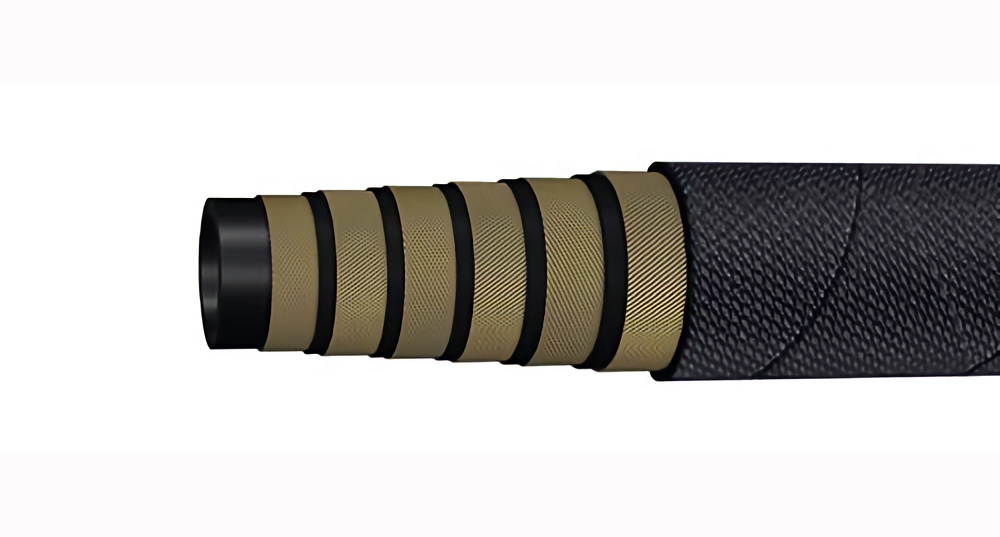

SAE J517 TYPE 100 R15 RUBBER HYDRAULIC HOSE
TUBE : Oil resistant synthetic rubber.
REINFORCEMENT : Four or six high tensile steel spirals.
COVER : High Ozone, weather and heat resistant synthetic rubber.
Temperature Range : -40°C ~ +121°C （250°F ）.
APPLICATIONS : SAE J517 R15 rubber hydraulic hose suitable for mineral oils, vegetable oils and synthetic ester based oils, glycols and polyglycols, mineral oils in aqueous emulsion, water.
| SAE J517 TYPE 100 R15 RUBBER HYDRAULIC HOSE | |||||||||||
| DN | DASH | Hose I.D | R.O.D | MAX O.D | W.P. | B.P. | MIN B.R | LENGTH | |||
| inch | mm | mm | mm | Mpa | Psi | Mpa | Psi | mm | m | ||
| 10 | -6 | 3/8″ | 9.7±0.4 | 20.3 | 23.3 | 42.0 | 6090 | 168.0 | 24360 | 150 | 20/40 |
| 13 | -8 | 1/2″ | 12.9±0.6 | 24.0 | 26.8 | 42.0 | 6090 | 168.0 | 24360 | 200 | 20/40 |
| 19 | -12 | 3/4″ | 19.2±0.6 | 32.9 | 36.1 | 42.0 | 6090 | 168.0 | 24360 | 265 | 20/40 |
| 25 | -16 | 1″ | 25.7±0.7 | 38.9 | 42.9 | 42.0 | 6090 | 168.0 | 24360 | 330 | 20/40 |
| 32 | -20 | 1-1/4″ | 32.2±0.8 | 48.4 | 51.5 | 42.0 | 6090 | 168.0 | 24360 | 445 | 20/40 |
| 38 | -24 | 1-1/2″ | 38.5±0.8 | 56.3 | 59.6 | 42.0 | 6090 | 168.0 | 24360 | 530 | 20/40 |
| 51 | -32 | 2″ | 51.4±0.6 | / | 71.0 | 42.0 | 6090 | 168.0 | 24360 | 640 | 20/40 |
NOTE : Any color cover will available as requirement. Any questions please feel free to contact us.
