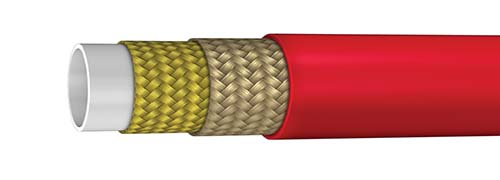

CNG NATRUAL GAS HOSE
TUBE : Conductive Polyamide Tube.
REINFORCEMENT : Multiple braids of aramid and steel wire.
Temperature Range : -40°C ~ +80°C.
COVER : PU.
APPLICATIONS : CNG gas hose suitable for CNG powered vehicles, Refueling of Mobile and Stationary units used to refill natural gas, CNG lines, CNG refueling dispensers. Twin hose available.
| CNG NATURAL GAS HOSE | ||||||||||
| DN | DASH | Hose I.D | O.D | W.P | B.P | B.R | WEIGHT | |||
| inch | mm | mm | psi | mpa | psi | mpa | mm | kg/m | ||
| 5 | -3 | 3/16″ | 4.8 | 11.70 | 7250 | 50.0 | 29000 | 200 | 38 | 0.210 |
| 6 | -4 | 1/4″ | 6.4 | 14.00 | 7250 | 50.0 | 29000 | 200 | 70 | 0.260 |
| 10 | -6 | 3/8″ | 9.5 | 19.30 | 5000 | 34.5 | 20000 | 138 | 100 | 0.380 |
| 12 | -8 | 1/2″ | 12.7 | 21.10 | 5000 | 34.5 | 20000 | 138 | 180 | 0.410 |
| 19 | -12 | 3/4″ | 19.0 | 29.20 | 5000 | 34.5 | 20000 | 138 | 250 | 0.770 |
| 25 | -16 | 1″ | 25.4 | 37.50 | 5000 | 34.5 | 20000 | 138 | 254 | 0.980 |
NOTE : Any color cover will available as requirement. Any questions please feel free to contact us.
SWICO TECHNOLOGY produce SAE standards hydraulic hoses, DIN standards hydraulic hose and industrial hose, including super high pressure rubber hose, high pressure rubber hose, low pressure rubber hose, CNG hose, LPG hose, large diameter PTFE hose, oil hose, air hose, water hose, large diameter oil suction and discharge hose, large diameter water suction and discharge hose, chemical hose, mining hose, concrete delivery hose etc. All cilients will get satisfying service and products from us.
