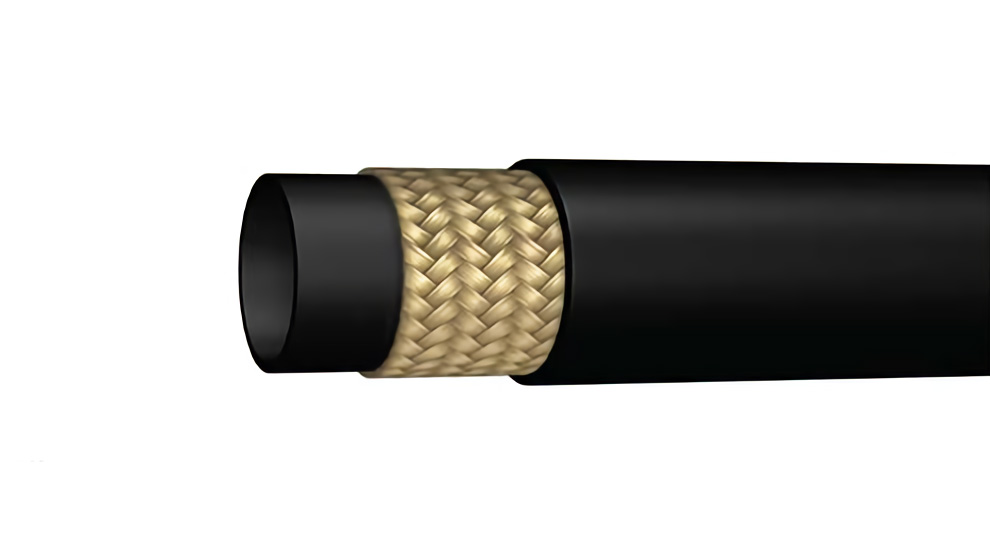

PAINT SPRAY HOSE 1W
TUEB : Nylon
REINFORCEMENT : One layer of high tensile steel wire braided
COVER : PU
Temperature Range : -40℃~+100℃ （212°F ）
APPLICATIONS : Used for airless paint spray systems. Also suitable for applications requiring chemical resistance to solvents and aggressive fluids.
| PAINT SPRAY HOSE 1W | ||||||||||
| DN | DASH | Hose I.D | O.D | W.P | B.P | B.R | WEIGHT | |||
| inch | mm | mm | psi | mpa | psi | mpa | mm | kg/m | ||
| 5 | -3 | 3/16″ | 4.8 | 9.7 | 5000 | 35 | 20000 | 140 | 30 | 0.138 |
| 6 | -4 | 1/4″ | 6.4 | 11.7 | 4650 | 32 | 18600 | 128 | 40 | 0.180 |
| 8 | -5 | 5/16″ | 8.0 | 13.6 | 4000 | 27.5 | 16000 | 110 | 50 | 0.220 |
| 10 | -6 | 3/8″ | 9.5 | 15.2 | 3600 | 25 | 14400 | 100 | 60 | 0.257 |
| 12 | -8 | 1/2″ | 12.7 | 18.4 | 2750 | 19 | 11000 | 76 | 75 | 0.337 |
| 16 | -10 | 5/8″ | 16.0 | 22.2 | 2300 | 16 | 9200 | 64 | 110 | 0.450 |
| 19 | -12 | 3/4″ | 19.0 | 25.7 | 1750 | 12 | 7000 | 48 | 150 | 0.531 |
| 25 | -16 | 1″ | 25.4 | 32.4 | 1450 | 10 | 5800 | 40 | 230 | 0.660 |
NOTE : Any color cover will available as requirement. Any questions please feel free to contact us.
SWICO TECHNOLOGY produce SAE standards hydraulic hoses, DIN standards hydraulic hose and industrial hose, including super high pressure rubber hose, high pressure rubber hose, low pressure rubber hose, CNG hose, LPG hose, large diameter PTFE hose, oil hose, air hose, water hose, large diameter oil suction and discharge hose, large diameter water suction and discharge hose, chemical hose, mining hose, concrete delivery hose etc. All cilients will get satisfying service and products from us.
