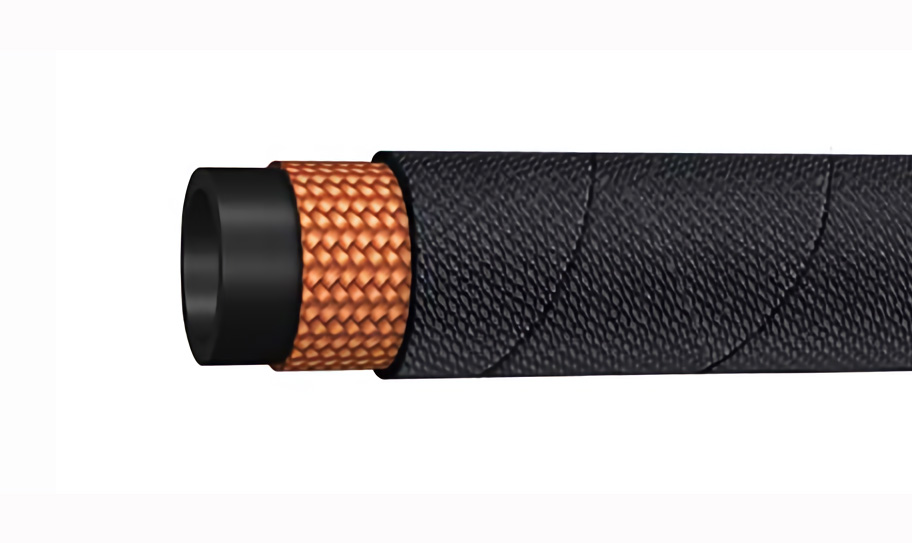

HIGH PERFORMANCE RUBBER AIR WATER HOSE
TUBE: High performance NR+SBR synthetic rubber
REINFORCEMENT：One layer of high tensile fiber braided
COVER：High performance NR+SBR synthetic rubber
Temperature Range : -40℃~+100℃ （212°F ）
APPLICATIONS：Transport air, water, sewage, Used in industry, heavy engineering, etc
| HIGH PERFORMENCE RUBBER AIR/WATER HOSE | |||||||||
| DN | dash | Hose I.D | O.D | W.P. | B.P. | MIN B.R | WEIGHT | LENGTH | |
| inch | mm | mm | Mpa | Mpa | mm | kg/m | m | ||
| 6 | -4 | 1/4″ | 11.3±0.6 | 16.1±0.6 | 2.0 | 6.0 | 35 | 0.17 | 50 |
| 8 | -5 | 5/16″ | 13.3±0.6 | 17.5±0.6 | 2.0 | 6.0 | 50 | 0.25 | 50 |
| 10 | -6 | 3/8″ | 15.8±0.6 | 20.0±0.6 | 2.0 | 6.0 | 60 | 0.29 | 50 |
| 13 | -8 | 1/2″ | 19.3±0.6 | 23.5±0.6 | 2.0 | 6.0 | 70 | 0.37 | 50 |
| 16 | -10 | 5/8″ | 22.3±0.6 | 27.5±0.6 | 2.0 | 6.0 | 80 | 0.45 | 50 |
| 19 | -12 | 3/4″ | 26.3±0.6 | 29.7±0.6 | 2.0 | 6.0 | 110 | 0.58 | 50 |
| 25 | -16 | 1″ | 32.3±0.6 | 37.5±0.6 | 2.0 | 6.0 | 130 | 0.72 | 50 |
| 32 | -20 | 1-1/4″ | 39.0±0.6 | 44.5±0.6 | 2.0 | 6.0 | 230 | 0.94 | 50 |
| 38 | -24 | 1-1/2″ | 45.0±0.6 | 50.5±0.6 | 2.0 | 6.0 | 270 | 1.08 | 50 |
| 51 | -32 | 2″ | 59.5±0.6 | 65.5±0.6 | 2.0 | 6.0 | 400 | 1.80 | 50 |
SWICO TECHNOLOGY produce SAE standards hydraulic hoses, DIN standards hydraulic hose and industrial hose, including super high pressure rubber hose, high pressure rubber hose, low pressure rubber hose, CNG hose, LPG hose, large diameter PTFE hose, oil hose, air hose, water hose, large diameter oil suction and discharge hose, large diameter water suction and discharge hose, chemical hose, mining hose, concrete delivery hose etc. All cilients will get satisfying service and products from us.
