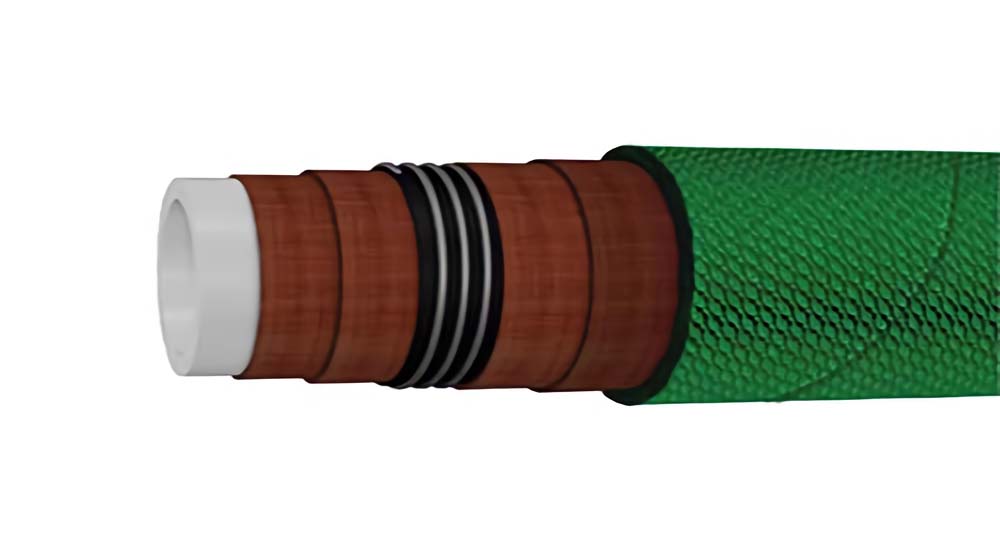

RUBBER CHEMICAL HOSE
TUBE : Chemical resistant synthetic rubber.
REINFORCEMENT : Helix steel wire and multi-layer anti static fiber spiral.
COVER : High performance oil and abrasion synthetic rubber.
Temperature Range : -30°C ~ +120°C.
APPLICATIONS : Rubber chemical hose suitable for suction and discharge chemicals, universal liquild etc.
| RUBBER CHEMICAL HOSE | |||||||||
| DN | DASH | Hose I.D | O.D | W.P | B.P | WEIGHT | |||
| inch | mm | mm | psi | mpa | psi | mpa | kg/m | ||
| 19 | -12 | 3/4″ | 19.2 | 30 | 250 | 1.7 | 750 | 51 | 0.8 |
| 25 | -16 | 1″ | 25.7 | 35 | 250 | 1.7 | 750 | 51 | 1.4 |
| 32 | -20 | 1-1/4″ | 32.2 | 44 | 250 | 1.7 | 750 | 51 | 1.5 |
| 38 | -24 | 1-1/2″ | 38.5 | 50 | 250 | 1.7 | 750 | 51 | 2.0 |
| 51 | -32 | 2″ | 51.2 | 67 | 250 | 1.7 | 750 | 51 | 2.7 |
| 76 | -48 | 3″ | 76.0 | 94 | 250 | 1.7 | 750 | 51 | 4.5 |
| 100 | -64 | 4″ | 102.0 | 120 | 250 | 1.7 | 750 | 51 | 4.8 |
NOTE : Any color cover will available as requirement. Any questions please feel free to contact us.
SWICO TECHNOLOGY produce SAE standards hydraulic hoses, DIN standards hydraulic hose and industrial hose, including super high pressure rubber hose, high pressure rubber hose, low pressure rubber hose, CNG hose, LPG hose, large diameter PTFE hose, oil hose, air hose, water hose, large diameter oil suction and discharge hose, large diameter water suction and discharge hose, chemical hose, mining hose, concrete delivery hose etc. All cilients will get satisfying service and products from us.
