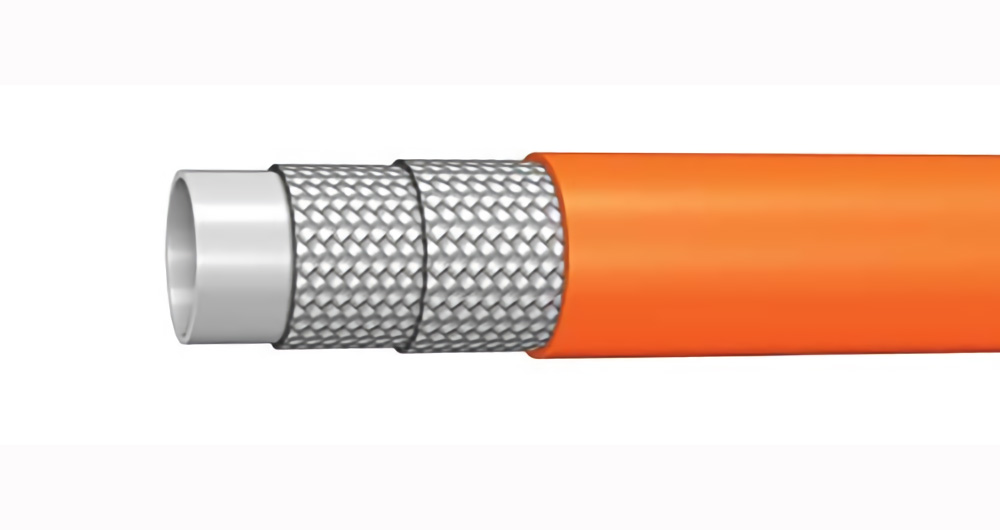

SEWER JET HOSE
TUBE : Thermoplastic Elastomer
REINFORCEMENT : One or two layer of high tensile fiber braided
COVER : PU
Temperature Range : -40℃~+100℃ （212°F ）
APPLICATIONS：Used for sewer cleaning vehicles and cleaning equipments. Special construction for optimum cut and wear resistance with bonded tube and cover.
| SEWER JET HOSE | ||||||||
| DN | DASH | Hose I.D | O.D | W.P. | B.P. | MIN B.R | LENGTH | |
| inch | mm | mm | Mpa | Mpa | mm | m | ||
| 3 | -2 | 1/8″ | 3.2 | 8.5 | 17.2 | 68.8 | 13 | 100 |
| 5 | -3 | 3/16″ | 4.8 | 10.8 | 21.0 | 84.0 | 33 | 100 |
| 6 | -4 | 1/4″ | 6.4 | 13.0 | 19.0 | 76.0 | 38 | 100 |
| 8 | -5 | 5/16″ | 8.0 | 15.1 | 17.5 | 70.0 | 46 | 100 |
| 10 | -6 | 3/8″ | 9.5 | 17.0 | 15.7 | 62.8 | 51 | 100 |
| 13 | -8 | 1/2″ | 12.7 | 20.7 | 14.0 | 56.0 | 76 | 100 |
| 16 | -10 | 5/8″ | 16.0 | 22.0 | 11.0 | 44.0 | 110 | 100 |
| 19 | -12 | 3/4″ | 19.0 | 26.0 | 8.7 | 34.8 | 127 | 50 |
| 25 | -16 | 1″ | 25.0 | 32.0 | 7.0 | 28.0 | 203 | 50 |
NOTE : Any color cover will available as requirement. Any questions please feel free to contact us.
SWICO TECHNOLOGY produce SAE standards hydraulic hoses, DIN standards hydraulic hose and industrial hose, including super high pressure rubber hose, high pressure rubber hose, low pressure rubber hose, CNG hose, LPG hose, large diameter PTFE hose, oil hose, air hose, water hose, large diameter oil suction and discharge hose, large diameter water suction and discharge hose, chemical hose, mining hose, concrete delivery hose etc. All cilients will get satisfying service and products from us.
