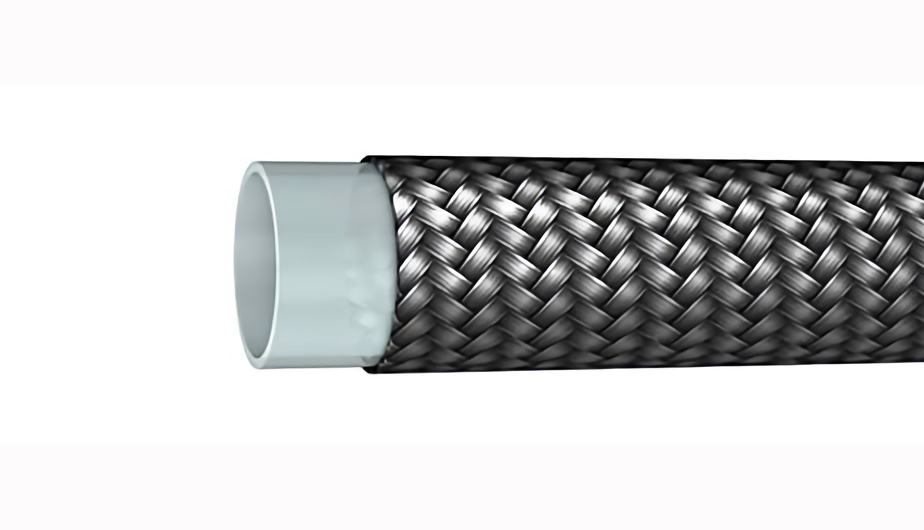

TEFLON NATURAL GAS HOSE
TUBE : PTFE.
REINFORCEMENT : One layer of high tensile stainless steel wire braided.
Temperature Range : -65°C~ －260°C (500°F).
APPLICATION : High pressure gas lines like gas cylinders, breathing apparatus and aerosol charging lines.
| TEFLON NATURAL GAS HOSE | ||||||||||
| DN | DASH | Hose I.D | O.D | W.P | B.P | B.R | WEIGHT | |||
| inch | mm | mm | psi | mpa | psi | mpa | mm | kg/m | ||
| 5 | -3 | 3/16″ | 4.8 | 8.2 | 1523 | 10.5 | 10150 | 70.0 | 50 | 0.090 |
| 6 | -4 | 1/4″ | 6.4 | 10.1 | 1523 | 10.5 | 9135 | 63.0 | 75 | 0.140 |
| 8 | -5 | 5/16″ | 8.0 | 11.6 | 1523 | 10.5 | 8120 | 56.0 | 100 | 0.168 |
| 10 | -6 | 3/8″ | 9.5 | 13.4 | 1523 | 10.5 | 7105 | 49.0 | 125 | 0.200 |
| 12 | -8 | 1/2″ | 12.7 | 16.8 | 812 | 5.6 | 6090 | 42.0 | 165 | 0.265 |
SWICO TECHNOLOGY produce SAE standards hydraulic hoses, DIN standards hydraulic hose and industrial hose, including super high pressure rubber hose, high pressure rubber hose, low pressure rubber hose, CNG hose, LPG hose, large diameter PTFE hose, oil hose, air hose, water hose, large diameter oil suction and discharge hose, large diameter water suction and discharge hose, chemical hose, mining hose, concrete delivery hose etc. All cilients will get satisfying service and products from us.
